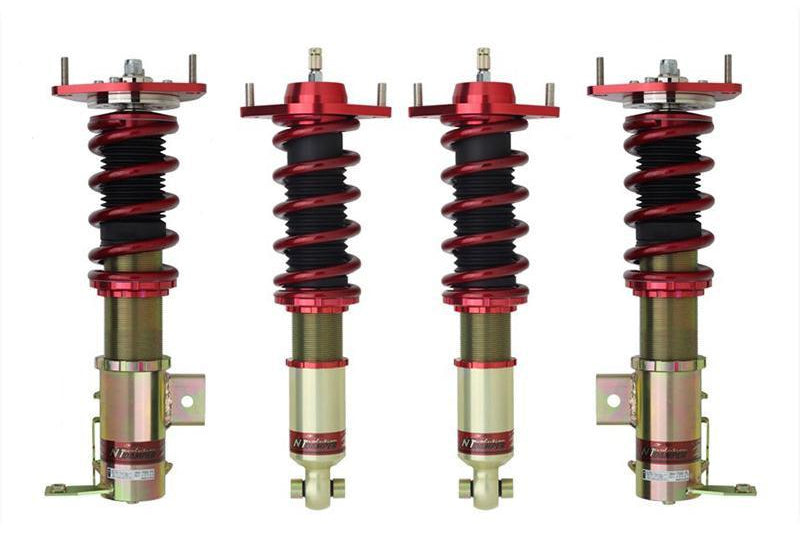

A’PEXi N1 Evolution Damper Full Coilover Kit – Toyota JZX90 / JZX100

**Some Apexi Products maybe on Back order, Please allow up to 30 days if the product is out of stock at our warehouse**

**please note actual product pic may be different to the pic on the listing**

The A’PEXi N1 Evolution Damper is a high-performance full coilover suspension kit developed for demanding street, circuit and drift applications.

Featuring large 46mm pistons, 25-stage damping adjustment and full-length ride-height adjustment, the N1 Evolution Damper provides precise suspension control without relying solely on spring preload to adjust the vehicle height.

Two versions are available: a standard full kit with preset A’PEXi spring rates or an order-made full kit configured according to the customer’s intended use.

Vehicle Compatibility:

• Toyota Mark II, Chaser and Cresta
• Chassis: JZX90 and JZX100
• Compatible with turbo and naturally aspirated JZX90/JZX100 models
• A’PEXi’s official tested application is the 1JZ-GTE model
• Year reference: October 1992 to July 2001

Available Options:

Standard Full Kit:

The standard full kit is supplied with A’PEXi’s preset spring rates and suspension settings.

Front:

• Upright monotube damper
• Piston diameter: 46mm
• Standard lowering amount: Approximately 30mm
• Ride-height adjustment range: Approximately -15mm to -115mm
• Spring length: 9 inches
• Spring rate: 18 kgf/mm
• Fixed-type upper mount

Rear:

• Upright monotube damper
• Piston diameter: 46mm
• Standard lowering amount: Approximately 25mm
• Ride-height adjustment range: Approximately -15mm to -85mm
• Spring length: 9 inches
• Spring rate: 9 kgf/mm
• Fixed-type upper mount

Order-Made Full Kit:

The order-made full kit is custom-built according to the customer’s intended vehicle use and suspension requirements.

• Custom-selected front and rear spring rates
• Customised damper specifications
• Suitable for specialised street, circuit or drift applications
• Final specifications must be confirmed before production
• No fixed lowering range or spring rate applies to this option

Both Full Kits Include:

• Front and rear N1 Evolution dampers
• Front and rear coil springs
• Front and rear upper mounts
• Complete vehicle-specific coilover suspension kit

Product Features:

• Genuine A’PEXi Japan product
• 46mm high-capacity damper pistons
• 25-stage damping-force adjustment
• Full-length ride-height adjustment
• Improved steering response and suspension control
• Reduced body roll and weight transfer
• Suitable for performance street, circuit and drift use
• Rebuildable and serviceable damper construction
• Damper settings can be reconfigured to suit different applications

Fitment Note:

A’PEXi officially tested and developed this suspension for the 1JZ-GTE application. It can also be installed on naturally aspirated JZX90 and JZX100 models using the same suspension mounting configuration.

The standard spring and damping settings are performance-focused and based on the turbo model.

Order-Made Product Note:

The order-made version is a custom-production product. Spring rates, vehicle use and desired suspension specifications must be confirmed before ordering. Custom-order products cannot be cancelled or returned once production has commenced.
