Figs Engineering REAR SWAY ENDLINKS For 2IS/3GS

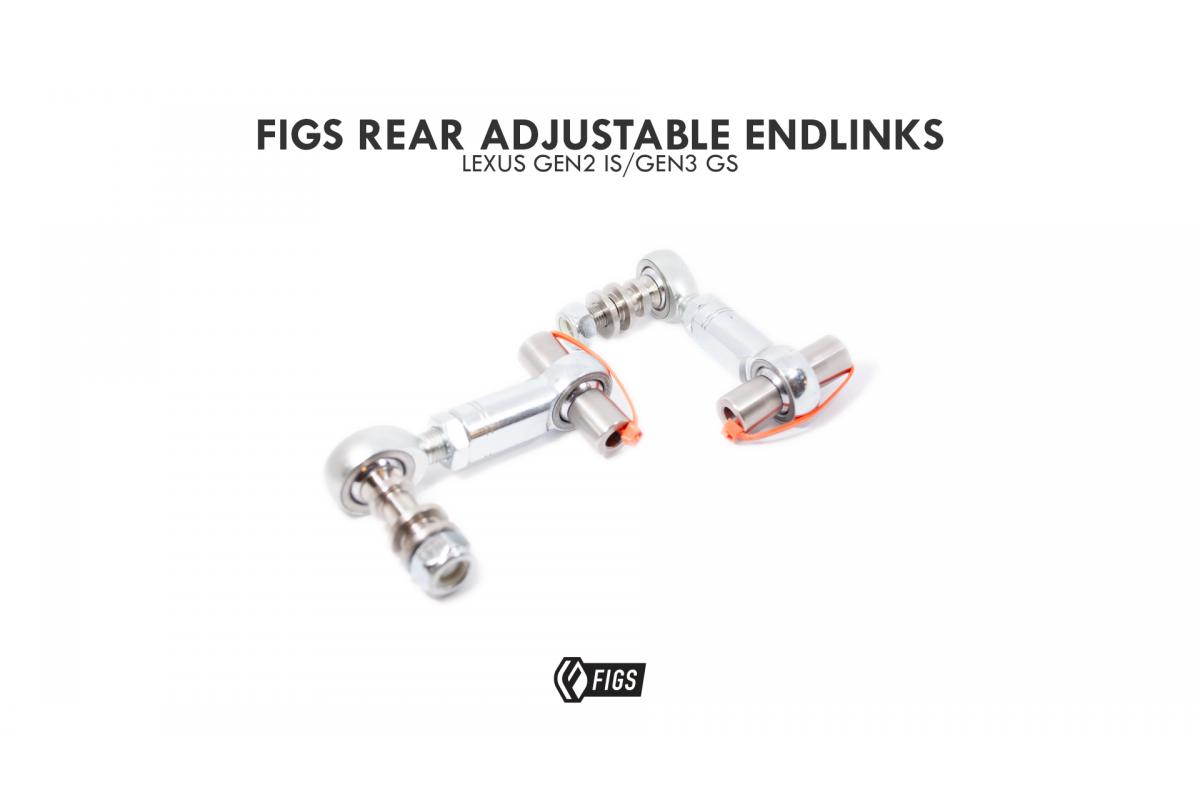

REAR SWAY BAR ENDLINKS

Application IS250 IS350 IS-F GS300 2006 GS350 GS430 GS460 GS450h

Version: 2.0 - upgraded rod ends and press in stud on mount end.

ROD END TYPE: 3-P FK Rod ends, Teflon lined, Precision series.

Includes a pair of endlinks

FEATURES:

-Allows preload adjustment when lowered or with aftermarket sway bars.

-Replaces bent or loose factory endlinks from lowered vehicles

-303 Stainless step down spacers for large bore sway diameter holes.

-Designed for lowered vehicles only.  Max length is shorter than factory links

For the factory control arm we add a slight lead-in on the spacers for easier installation since the arm is stamped and has a slight draft to it. If you are using our MEGA arms there is no need as they fit precisely.

NOTE: Do not exceed 20 ft-lbs of torque on the sway mount nut.
