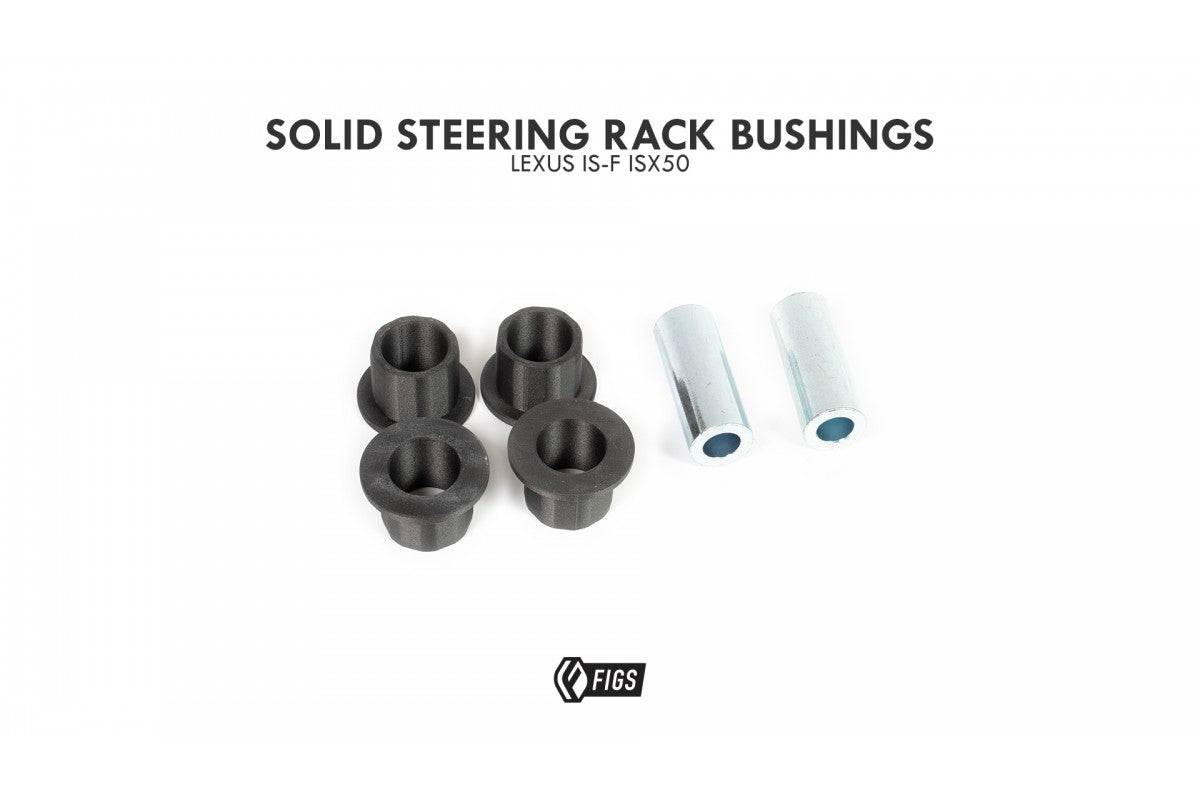

FIGS Engineering SOLID NYLON STEERING RACK BUSHINGS

Replace your worn bushings and upgrade to a higher performance option.

Specs:

-Carbon-fiber reinforced nylon printed on our Industrial Markforged 3d Printer. The Constellated design will not stress the rack and makes installation easy.

-2 case-hardened, machined center tubes.

If your rack assembly matches OE #45260-30200. This should also fit your vehicle.

Installation:

We suggest using the Ball joint installation tool as it will allow leverage in a very tight area.

-remove under panels

-unbolt steering linkage-note attachment location and add a witness mark.

-remove tie rods from the outer ball joints to make things easier.

-consider dropping the subframe if space is challenging.

-mind connectors and harnesses, these racks are expensive.

-unbolt rack and pull forward.

-Use a block or spacer to support the rack against the subframe and drive out to factory bushings.

-install each side of the bushings, then the center tubes afterward.  Use the ball joint tool for leverage.

-lubricate if needed with synthetic silicone grease.

-Go slow, do not let the tube go in at an angle.  These racks are delicate, particularly on the drivers' side.  go slow.

Once installed and flush, reverse steps.
