FIGS/ RADIUM ENGINEERING COMPETITION AOS CATCH CAN KIT For Lexus ISF

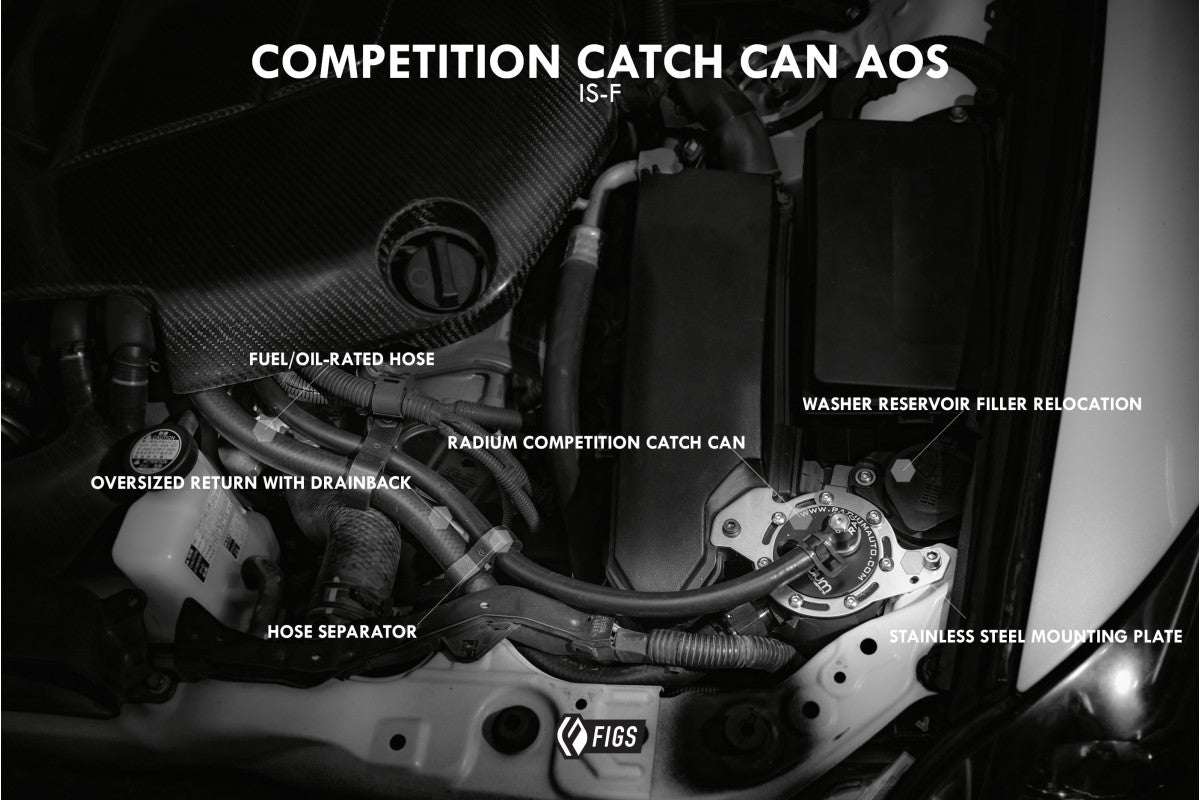

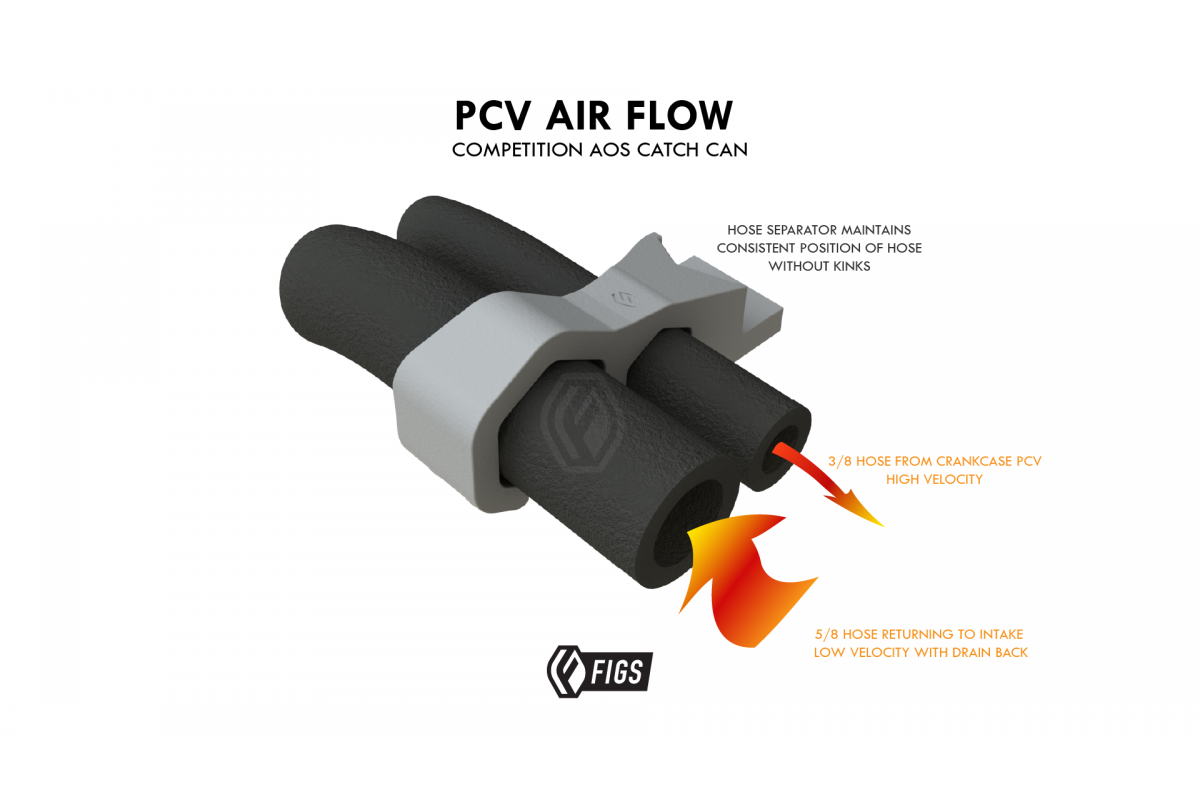

If you are tracking your car, running thinner oil, or adding forced induction, a larger PCV catch can might be desirable.  We have spent a great deal of time integrating the Radium Competition VTE Catch can into the IS-F application.  This catch can meets the minimum requirement for SCCA, NASA and FD with a 1 qt capacity.  The VTE (vent to engine) can is specifically designed for returning clean air back into the intake.  We have made this as seamless as possible, with an integrated mount, transitions fittings, washer reservoir relocation, and a petcock drain that routes down to the oil filter housing area for easy access.  We also increased the return hose diameter to 5/8" to reduce the air velocity and promote further separation of finely atomized fluids in the return path. The hose diameter and locations also promote a drain-back function to the can.

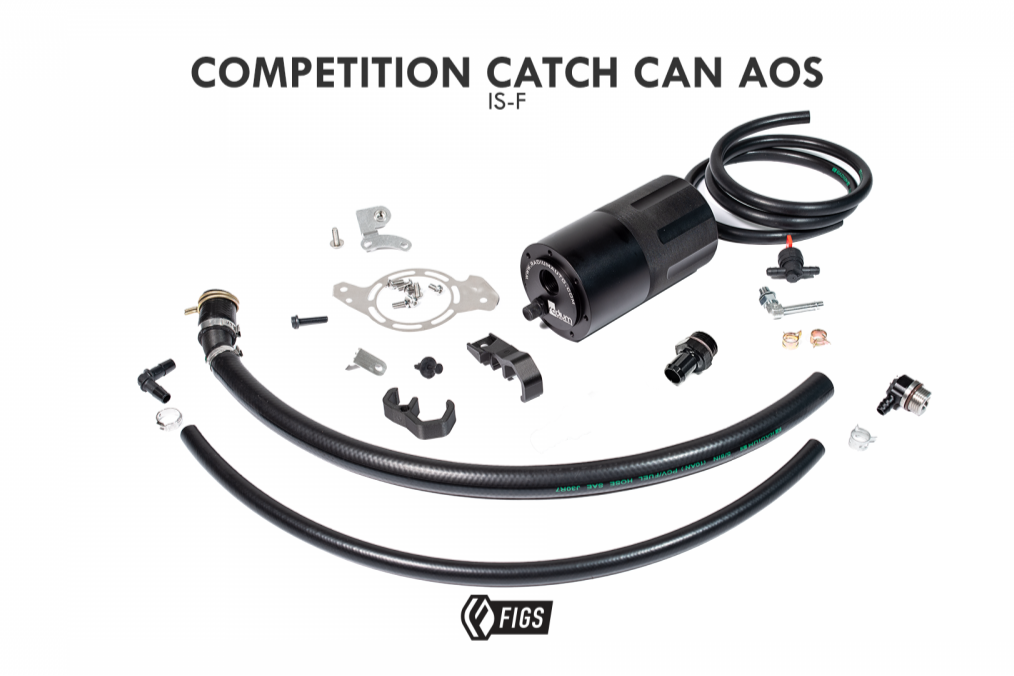

Features:

• Radium Engineering Competition VTE .625qt Catch Can (L) with drain and dipstick.
• 3/8" PCV hose from crankcase and 5/8" intake return hose with step-up transition to OE intake hose diameter.
• All hoses are Fuel/Oil PCV-rated hoses to resist sweating and provide stable airflow conditions.
• Laser-cut stainless steel mounting plate and washer reservoir fill relocation.
• All clamps to intercept the stock PCV hose and clamp to the intake are included.
• -10 ORB fittings to the catch can included.
• Right angle ORB and 1/4" hose drain petcock included. Route to Oil filter door on front underplate.
• 2 hose separators included, one with a mount to the grounding point on the front of the engine to position hoses properly.
• OPTIONAL: Lowering the kit to drop the catch can low enough to clear engine plastic covers. This add-on adds 3 riser spacers and one shim for the body mount. The 2-hole riser will go where the Washer reservoir relocates.  You will not be able to fill the washer reservoir with this kit without removing the side cover for access.  Note due to some fastener interference, slight trimming may still be necessary, but it will be minimal.
