Figs "STUBBY" REAR SWAY ENDLINKS MKIV SUPRA LEXUS SC GS300

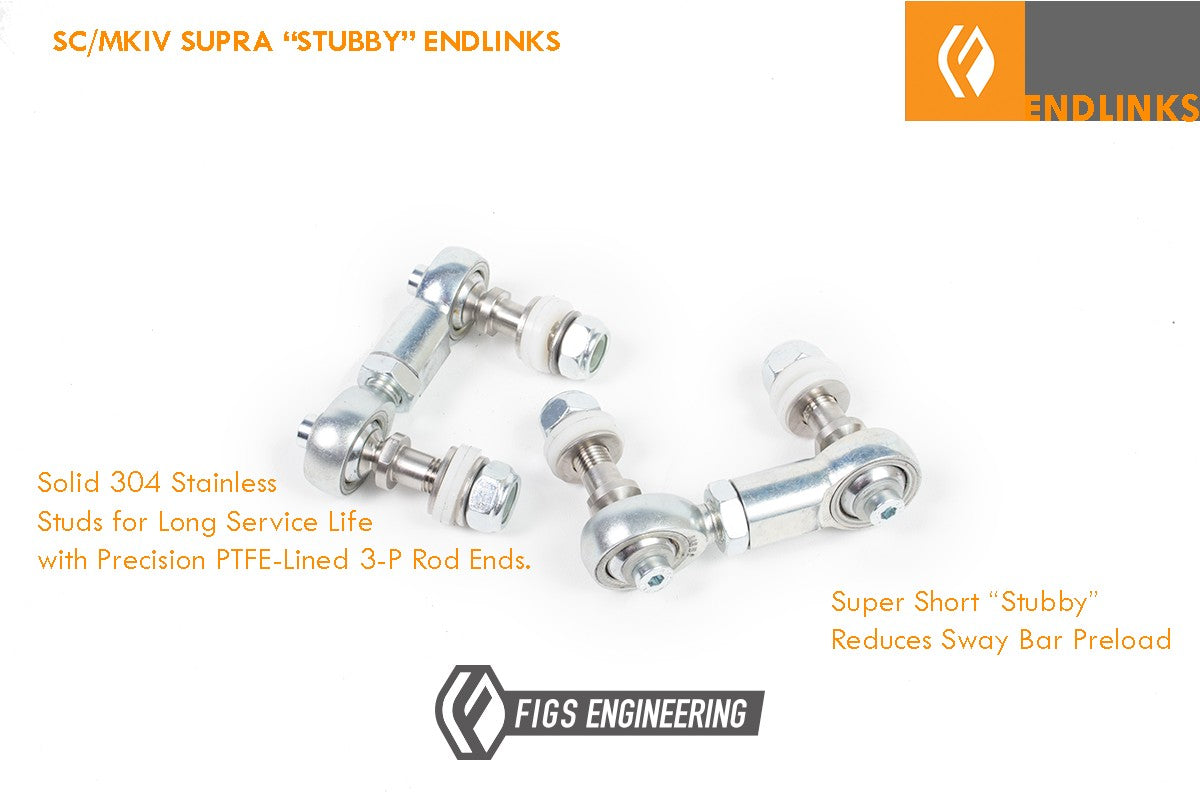

"STUBBY" REAR SWAY BAR ENDLINKS

Application TOYOTA MKIV SUPRA, LEXUS SC300/400, JZS147 GS300/ARISTO

Version: 2.0 - upgraded rod ends and press in stud on mount end.

ROD END TYPE: 3-P FK Rod ends, Teflon lined, Precision series.

Includes 2 complete assemblies for both sides.

FEATURES:

-Stubby design is the lowest profile of any aftermarket link.

-Allows preload elimination when lowered or with aftermarket sway bars. This makes the sway bar perform better.

-Replaces bent or loose factory endlinks from lowered vehicles

INSTALL NOTE:

- Measure the link length to make the sway bar pickup point flat with its bushing (0 preload) when the vehicle is loaded.

-Adjust the linkage to that length and mount, setting the jam nut.

-The stud is press fit to the rod end and has 2 flats on it. The 2 nylon washers are intended to be preloaded but do not over-tighten.  We suggest 24ft-lbs or a 1/4 turn past fully mated.
