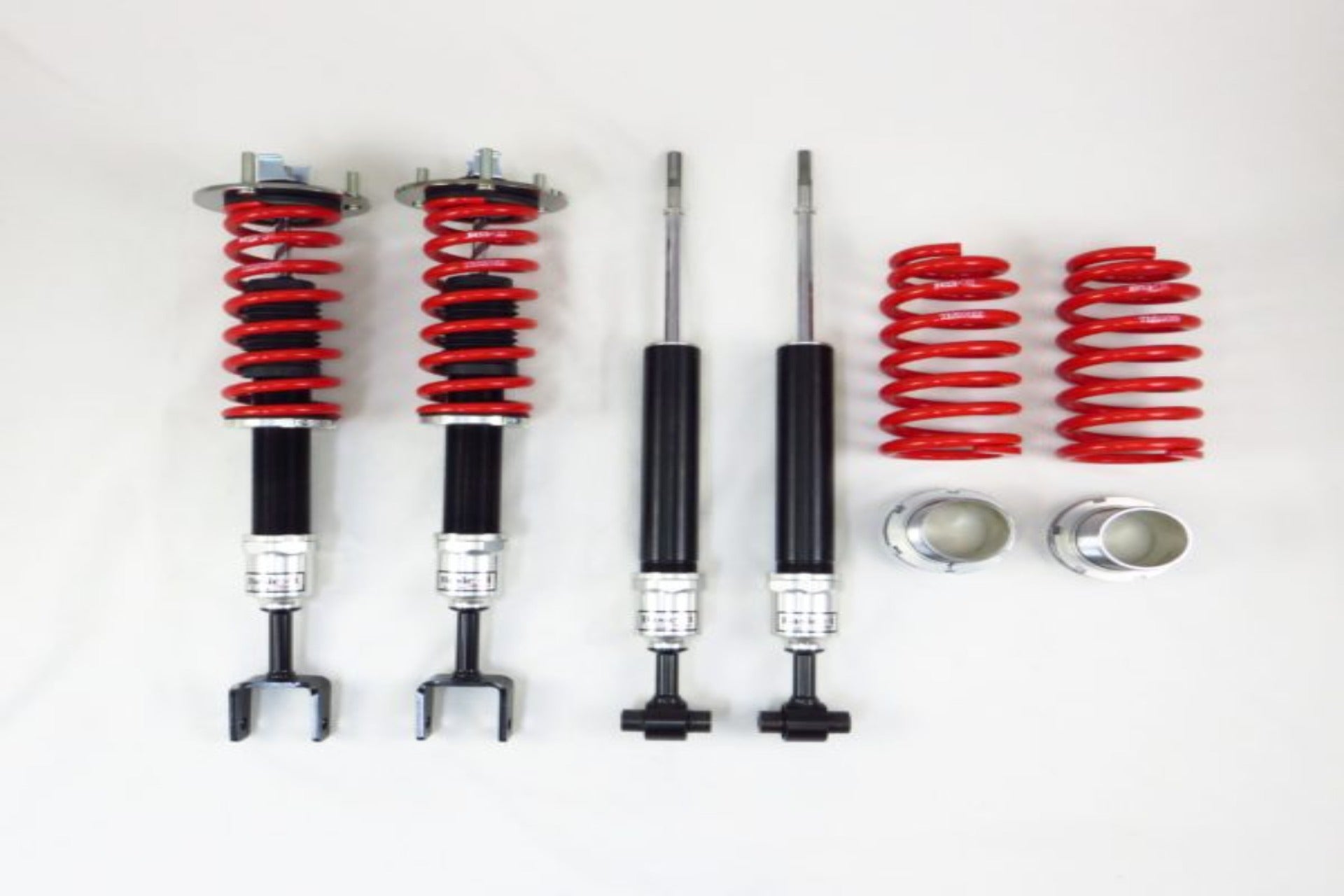

LEXUS GS350 F-SPORT AND GS450H RWD BASIC*I ACTIVE COILOVER 2013-2020

**Note All RSR Products have 2 weeks Turn around time as needed to be ordered if not in stock**

**Please check for stock availability before purchase if the stock has be ordered from the Supplier refunds and returns can not be processed**

Part#: XBAIT175MA
Compatibility: 2016-2020 Lexus GS350 F-Sport RWD and 2013-2015 GS450H RWD
Chassis code: GRL12 and GWL10

Preset Approximate Height From RS-R:

GS350 F-Sport

Front -35mm to -40mm (-1.4in to -1.6in)
Rear -35mm to -40mm (-1.4in to -1.6in)

GS450H
Front -25mm to -30mm (-1.0in to -1.2in)
Rear -30mm to -35mm (-1.2in to -1.4in)

Maximum Adjustment Ranges:

GS350 F-Sport
Front +20mm to -100mm (+0.8in to -4.0in)
Rear -10mm to -65mm (-0.4in to -2.6in)

GS450H
Front +25mm to -115mm (+1.0in to – 4.6in)
Rear -15mm to -70mm (-0.6in to -2.8in)

Recommended Adjustments for Optimal Ride-ability:

GS350 F-Sport
Front -5mm to -55mm (-0.2in to -2.2in)
Rear -10mm to -65mm (-0.4in to -2.6in)

GS450H
Front -10mm to -65mm (-0.4in to -2.6in)
Rear  -15mm to -70mm (-0.6in to -2.8in)

Spring Rates: Both
Front 9.00kg/mm
Rear 8.30kg/mm

Compatible with Factory AVS System. Preset Damper Force Adjustment
