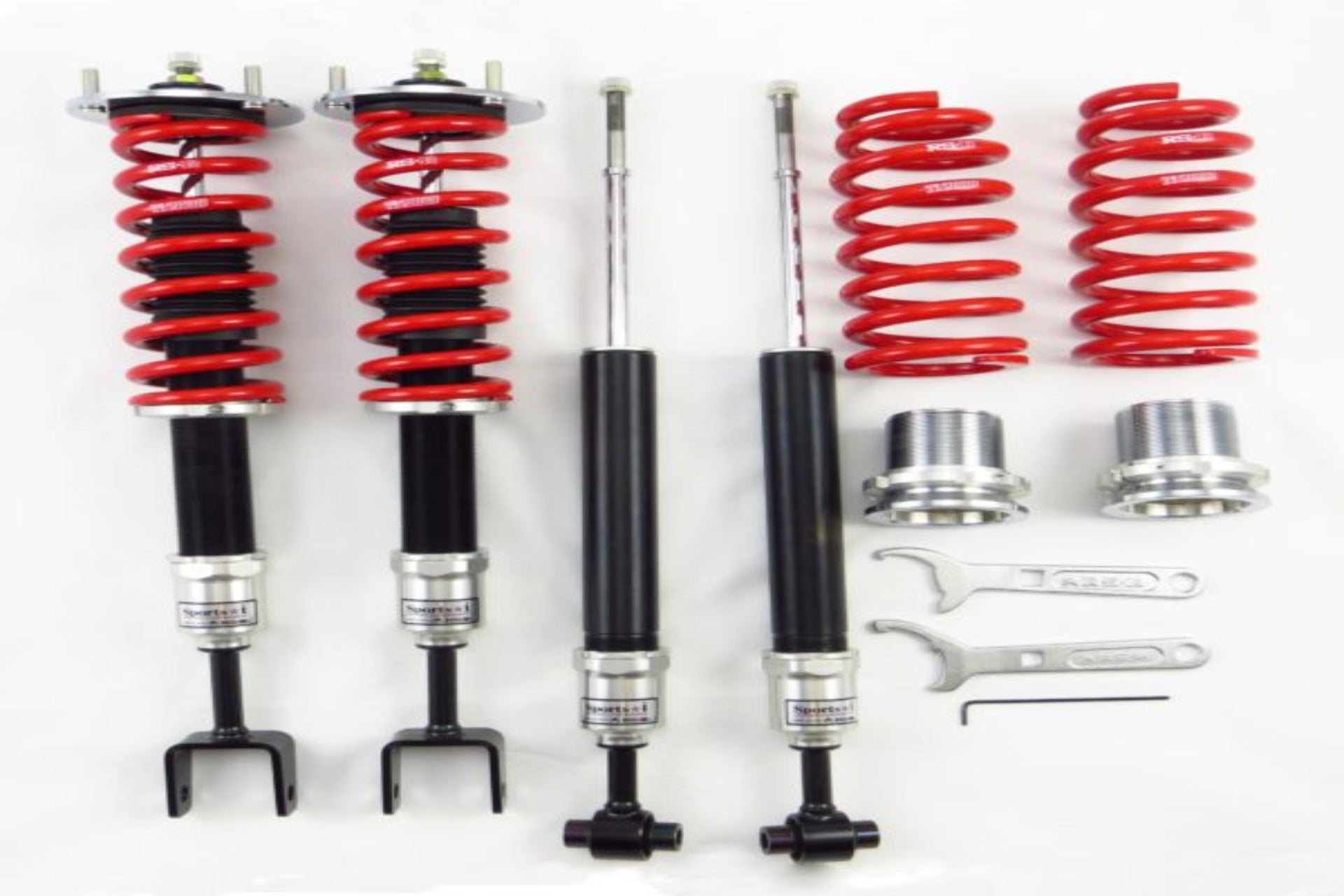

LEXUS GS350 RWD F SPORT BEST*I ACTIVE COILOVERS 2013-2015

Part#: XLIT170MA
Compatibility: 2013-2015 Lexus GS350 RWD F Sport
Chassis code: GRL10

Preset Approximate Height From RS-R:
Front -25mm to 30mm (-1.0in to -1.2in)
Rear -30mm to -35mm (-1.2in to -1.4 in)

Maximum Adjustment Ranges:
Front +15mm to -95mm (+0.6in to -3.7in)
Rear -15mm to -60mm (-0.6in to -2.4in)

Recommended Adjustments for Optimal Ride-ability:
Front 0mm to -60mm (0.0in to -2.4in)
Rear -15mm to -60mm (-0.6in to -2.4in)

Spring Rates:
Front 9.00kg/mm
Rear 8.30kg/mm

Main damper adjustments done through Factory AVS controller

Secondary 24 way adjustment dial located at the base of the dampers.
