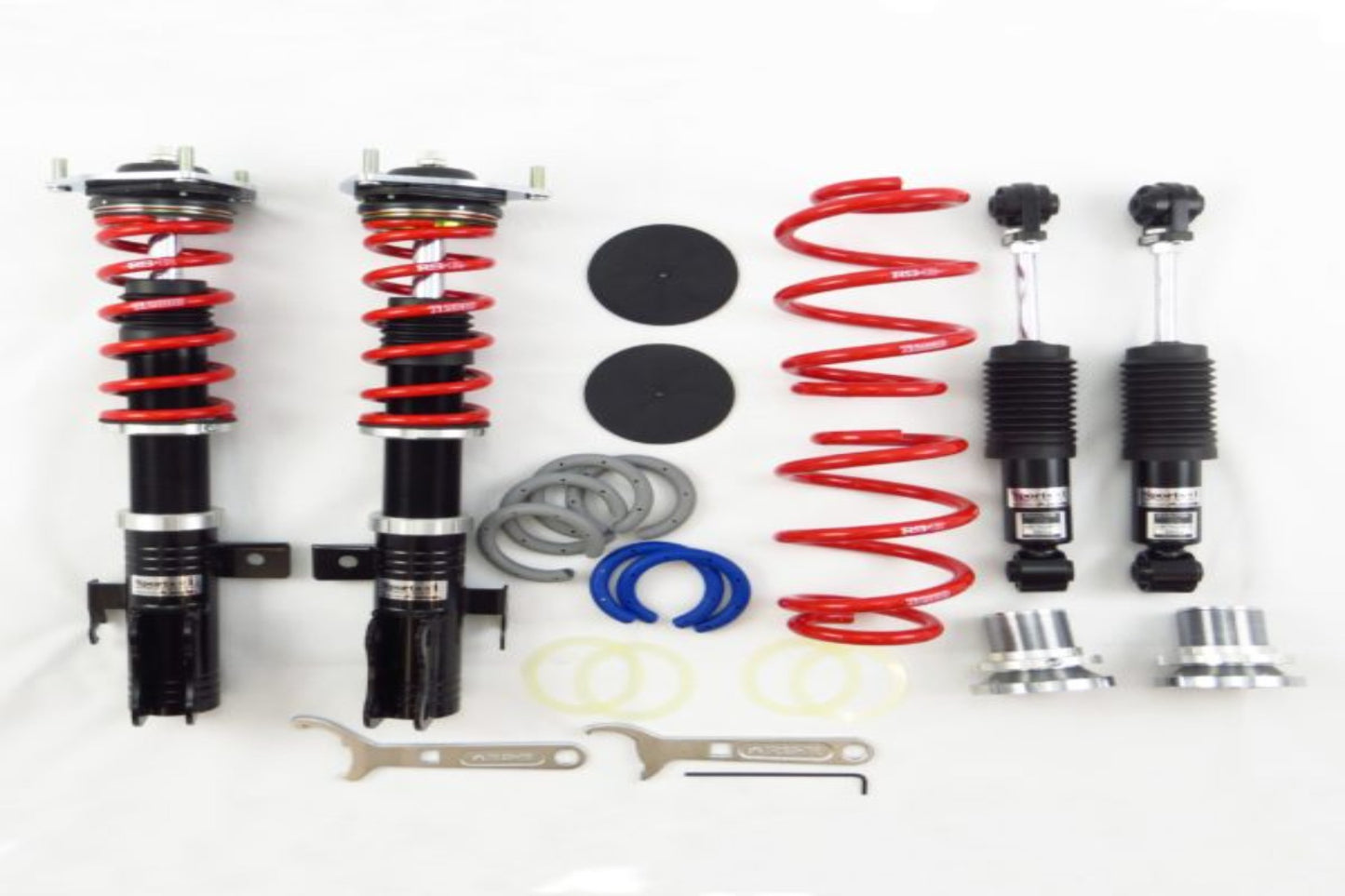

LEXUS NX200T SPORTS-I COILOVERS 2015-2017

**Note All RSR Products have 2 weeks Turn around time as needed to be ordered if not in stock**

**Please check for stock availability before purchase if the stock has be ordered from the Supplier refunds and returns can not be processed**

Part#: XBIT532M
Compatibility: 2015-2017 Lexus NX200T FWD & AWD
Chassis code: AGZ10 & AGZ15

Specifications for FWD:

Preset Approximate Height From RS-R:
Front -45mm (-1.8inch)
Rear -45mm (-1.8inch)

Maximum Adjustment Ranges:
Front -20mm to -125mm (-0.8inch to -5.0inch)
Rear -25mm to -80mm (-1.0inch to -3.1inch)

Recommended Adjustments for Optimal Ride-ability:
Front  -30mm to -70mm (-1.2inch to -2.8inch)
Rear -25mm to -80mm (-1.0inch to -3.1inch)

Specifications for AWD:

Preset Approximate Height From RS-R:
Front -45mm (-1.8inch)
Rear -45mm (-1.8inch)

Maximum Adjustment Ranges:
Front -20mm to -125mm (-0.8inch to -5.0inch)
Rear -30mm to -80mm (-1.2inch to -3.1inch)

Recommended Adjustments for Optimal Ride-ability:
Front  -30mm to -70mm (-1.2inch to -2.8inch)
Rear  -30mm to -80mm (-1.2inch to -3.1inch)

Spring Rates:
Front 6.00kg/mm
Rear 6.30kg/mm

Dampers are 36 way adjustable in the front and the rear. Warranty 1 Year / 12,000 miles from the day of purchase.
